What are passive GPS ceramic patch antennas?
The high-performance passive GPS ceramic patch antenna CTRF-ANTENNA-GPS-1575-151504 is an internal GPS antenna passive ceramic patch antenna. It has a 1575.42MHz & 1561MHz dual-band frequencies passive GPS antenna made by C&T RF Antennas Inc. for GPS and Beidou positioning applications.
The high-performance passive GPS ceramic patch antenna CTRF-ANTENNA-GPS-1575-151504 style comes with no RG cable extension, no IPEX connector connection. It has a 15x15mm size, 4mm thickness. Also, 2mm thickness is selectable.
The high-performance passive GPS ceramic patch antennas are supplied by C&T RF Antennas Inc., the RF antennas’ active GPS antenna supplier and passive GPS antenna manufacturer in China.
C&T RF Antennas Inc. provides Radio frequency antennas with PCB & Flex PCB & Omni antenna types, covering the following frequencies:
5G NR PCB Antennas, LTE PCB Antennas, GSM PCB Antennas, Wifi PCB Antennas, NB-IoT PCB Antennas, LoRa PCB Antennas, GPS PCB Antennas;
5G NR FPC Antennas, 4G FPC Antennas, 3G FPC Antennas, NB-IoT FPC Antennas, Wifi FPC Antennas, GPS FPC Antennas, LoRa FPC Antennas;
5G Omni Antennas, 4G Omni Antennas, Wifi Omni Antennas, LoRa Omni Antennas, etc.
Besides the ceramic GPS antenna, we also provide the GPS antenna with a plastic housing and an SMA connector / MMCX connector / Fakra connector for your choice.
Contact us for more information on the high-performance passive GPS ceramic patch antenna, such as the ceramic patch antenna datasheet, GPS patch antenna pricing, GPS ceramic antenna inventory.
Or other active & passive antenna products.
High-performance Passive GPS Ceramic Patch Antennas Specifications
High-performance Passive GPS Ceramic Patch Antennas Electrical Specifications |
|
| RF Antenna Type | GPS Patch Antenna |
| Model | CTRF-ANTENNA-GPS-1575-151504 |
| Frequency | 1575.42MHz/1561MHz |
| Gain | 2dBi |
| VSWR | ≤2.0 |
| Impedance | 50 Ω |
| Polarization | Right-Hand Circular Polarization |
| DC voltage | 1.8-3V |
| DC | 4-8mA |
High-performance Passive GPS Ceramic Patch Antennas Mechanical Specifications |
|
| Dimension | 15x15x4mm |
| Weight | Approx. 20g |
| Material | Ceramic |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +90˚C |
| Color | White |
| Antenna Form | Passive |
| Mounting | Screw |
| Safety, Emission, and other | RoHS Compliant |
| Applications | GPS/GNSS/Beidou |

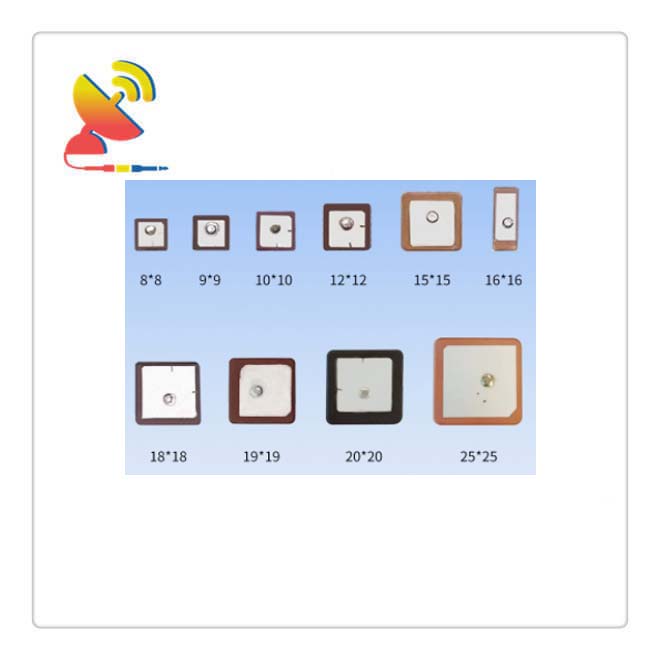

We have below passive ceramic GPS antenna sizes for your best choice.
16*6*2mm passive GPS ceramic antenna
16*6*4mm passive GPS ceramic antenna
20*6*2mm passive GPS ceramic antenna
20*6*4mm passive GPS ceramic antenna
15*15*2mm passive GPS ceramic antenna
15*15*4mm passive GPS ceramic antenna
18*18*2mm passive GPS ceramic antenna
18*18*4mm passive GPS ceramic antenna
25*25*2mm passive GPS ceramic antenna
25*25*4mm passive GPS ceramic antenna
etc.
Besides the passive GPS ceramic patch antennas. We also have below active GPS antenna ceramic patch antenna sizes for your best choice.
8*8mm active ceramic GPS antenna
10*10mm active ceramic GPS antenna
12*12mm active ceramic GPS antenna
15*15mm active ceramic GPS antenna
18*18mm active ceramic GPS antenna
20*20mm active ceramic GPS antenna
25*25mm active ceramic GPS antenna
35*35mm active ceramic GPS antenna
16*6mm active ceramic GPS antenna
19*6mm active ceramic GPS antenna
etc.
