FPC Antennas

What is an FPC antenna?

A flexible printed circuit (FPC) board serves planar wireless antenna design. Effectively to supersede the antenna based on the traditional fixed printer circuit board (PCB) implement, and then provide the free dimension of an antenna and wireless system integration to the designer.

What can frequency band be used in the FPC antenna?

According to the frequency band description, the FPC antenna has a WiFi antenna of 2400-2500MHz for the 2.4GHz frequency band, 824-2170MHz for 3G, GSM, NB-IoT, and GPRS. The 433MHz, 868Mhz, 915MHz for LoRa band FPC antennas, 1575.42Mhz frequency band for GPS flexible PCB antenna, and LTE 4G full-band 700-2700MHz FPC antennas, and 2.4G/5.8G dual-frequency 2400-2500MHz, 4900-5900MHz High-frequency flexible PCB board antenna, 5G new radio FPC antennas, etc.

What type of FPC antenna?

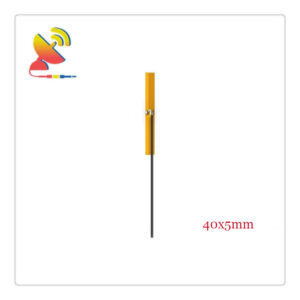

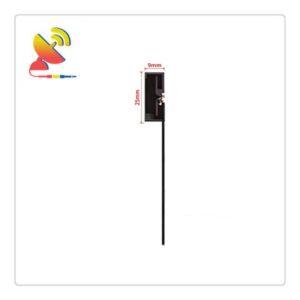

The FPC antenna is generally used for built-in, acting on the inside of the IoT & M2M devices, the thickness is 0.1mm, and it is square or rectangular. The tin-plated soldering place can be in the middle or the lower-left corner, which is based on needs.

The antenna extension pigtail is generally an IPEX terminal or an opening end, and the RG cable specification and the RG cable length can be customized.

C&T RF Antennas Inc provides the RF antennas with PCB & Flex PCB & Omni antenna types, covering the below frequencies:

5G NR PCB Antennas

LTE PCB Antennas

GSM PCB Antennas

Wifi PCB Antennas

NB-IoT PCB Antennas

LoRa PCB Antennas

GPS PCB Antennas

5G NR FPC Antennas

4G FPC Antennas

3G FPC Antennas

NB-IoT FPC Antennas

Wifi FPC Antennas

GPS FPC Antennas

LoRa FPC Antennas

5G Omni Antennas

4G Omni Antennas

Wifi Omni Antennas

LoRa Omni Antennas

C&T RF Antennas Inc is the embedded antennas FPC antennas manufacturer. Contact us for the catalog, datasheet, pricing, and inventory on the FPC Antennas.
