What is a Compact Size NBIoT LTE Flexible PCB Antenna?
The Compact Size NBIoT LTE Flexible PCB Antenna CTRF-ANTENNA-FPC-8221-3209-IPEX item is a low-profile NBIoT LTE embedded antenna designed & manufactured by C&T RF Antennas Inc.
This compact NBIoT LTE flexible PCB antenna features a small-size 32mm x 9mm flexible printed circuit board with a 60mm or 130mm selectable coaxial cable terminating in an IPEX (u.FL equivalent) connector. The antenna has a 3M self-adhesive backing sticker, making it easy to fix it to your project.
C&T RF Antennas Inc., China’s 4G LTE NB-IoT antenna manufacturer, supplies Compact-Size NBIoT LTE Flexible PCB Antennas.
C&T RF Antennas Inc. provides High-performance RF wireless antennas with PCB & Flex PCB & Omni antenna types, covering the following frequencies:
5G NR PCB Antennas, LTE PCB Antennas, GSM PCB Antennas, Wifi PCB Antennas, NB-IoT PCB Antennas, LoRa PCB Antennas, GPS PCB Antennas;
5G NR FPC Antennas, 4G FPC Antennas, 3G FPC Antennas, NB-IoT FPC Antennas, Wifi FPC Antennas, GPS FPC Antennas, LoRa FPC Antennas;
5G Omni Antennas, 4G Omni Antennas, Wifi Omni Antennas, LoRa Omni Antennas, etc.
Contact us for more information on the Compact Size NBIoT LTE Flexible PCB Antenna, such as the NBIoT LTE Antenna datasheet, FPC Antenna pricing, Antenna inventory, or other NB-IoT/LTE antenna designs.
Compact-Size NBIoT LTE Flexible PCB Antenna Specifications
Compact-Size NBIoT LTE Flexible PCB Antenna Electrical Specifications |
|
| RF Antenna Type | Embedded FPC Antenna |
| Model | CTRF-ANTENNA-FPC-8221-3209-IPEX |
| Frequency Range | 821-960MHz, 1710-2170MHz |
| Gain | 3dBi |
| Radiation Pattern | Omnidirectional |
| VSWR | ≤2.0 |
| Impedance | 50 Ω |
| Polarization | Vertical Polarization |
| Cable Type | RG1.13 |
| Connector | IPEX/U.FL |
| Lightning Protection | DC-Ground |
Compact-Size NBIoT LTE Flexible PCB Antenna Mechanical Specifications |
|
| Dimension | 32*9mm |
| Weight | Approx. 3g |
| Material | Flex PCB/FPC |
| Operation Temperature | -40˚C ~ +85˚C |
| Storage Temperature | -40˚C ~ +80˚C |
| Color | Black |
| Antenna Design | Dipole Array |
| Connector Pull Test | >= 1 Kg |
| Safety, Emission, and other | RoHS Compliant |
| Applications | Public Safety/LMR/P25/TETRA, ISM/SCADA/Utilities, RFID, IoT/LoRa/GSM, 2G 3G 4G, LTE/UMTS/DCS/PCS, NB-IoT/Cat, etc. |

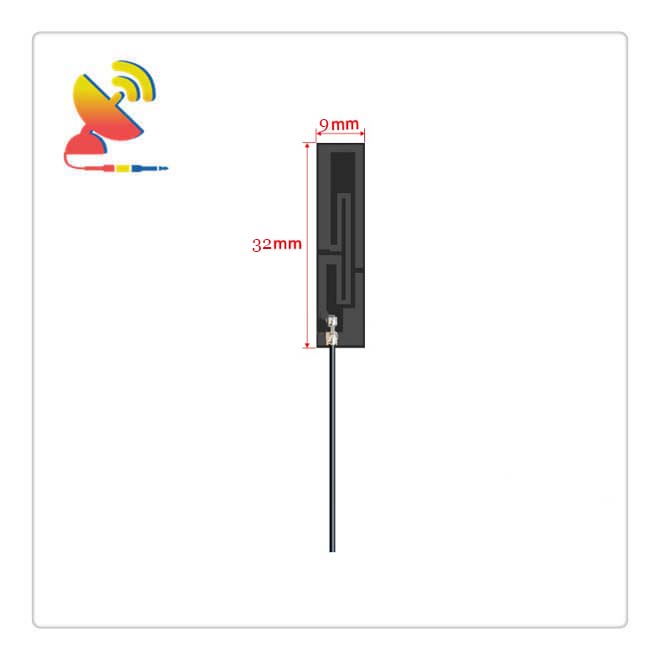

Size of Compact-Size NBIoT LTE Flexible PCB Antenna
Flexible PCB Antenna Features
