8dBi 2.4/5GHz Dual-band WiFi Antenna

2.4/5GHz Dual-band WiFi Antenna Design

C&T RF Antennas Inc. is a High-performance 8dBi 2.4/5GHz Dual-band WiFi Antenna Design and manufacturer. We provide many omnidirectional antennas for your best choice.

Contact the C&T RF sales team for more High-performance 8dBi 2.4/5GHz Dual-band WiFi Antenna details such as 2.4/5GHz Omni Antenna datasheet, 2.4/5GHz Omni Antenna price, and 2.4/5GHz Omni Antenna inventory.

Or other 2.4/5GHz antenna styles.

SKU CTRF-ANTENNA-FRP-2458-32600-NM Categories ,

Description

What is an 8dBi 2.4/5GHz Dual-band WiFi Antenna?

The 8dBi 2.4/5GHz Dual-band WiFi Antenna CTRF-ANTENNA-FRP-2458-32600-NM item is a dual-band wifi antenna outdoor 2.4 GHz & 5 GHz Omnidirectional fiberglass antenna manufactured by C&T RF Antennas Inc. for outdoor wireless network applications.

The SKU CTRF-ANTENNA-FRP-2458-32600-NM item is a dual-band frequency omni-directional antenna with coverage in the 2.4 and 5 GHz bands. The gain is 6 dBi at 2400-2500 MHz, and 8dBi at 5150-5850 MHz. This is a mast mount-style antenna with a N male connector.

8dBi 2.4/5GHz Dual-band WiFi Antenna Features

Dual-band antenna

Omni WiFi antenna

IP67-rated waterproof functional antenna

2400-2500MHz & 5150-5850MHz wide band frequency antenna

For outdoor WiFi/Bluetooth/BLE/Zigbee/Sigfox/Z-wave/ISM applications

etc.



The High-performance 8dBi 2.4/5GHz Dual-band WiFi Antennas are supplied by C&T RF Antennas Inc, the Omni and directional antenna manufacturer in China.

C&T RF Antennas Inc provides RF wireless antennas with PCB & Flex PCB & Omni antenna types, covering the below frequencies:

5G NR PCB AntennasLTE PCB AntennasGSM PCB AntennasWifi PCB AntennasNB-IoT PCB AntennasLoRa PCB AntennasGPS PCB Antennas;

5G NR FPC Antennas4G FPC Antennas3G FPC AntennasNB-IoT FPC AntennasWifi FPC AntennasGPS FPC AntennasLoRa FPC Antennas;

5G Omni Antennas4G Omni AntennasWifi Omni AntennasLoRa Omni Antennas; etc.

Contact us for more information on the High-performance 8dBi 2.4/5GHz Dual-band WiFi Antenna such as 2.4/5GHz WiFi Omni antenna datasheet, 2.4/5GHz WiFi Omni antenna pricing, 2.4/5GHz WiFi Omni antenna inventory, or other 2.4/5GHz WiFi antenna designs.



8dBi 2.4/5GHz Dual-band WiFi Antenna Specifications

8dBi 2.4/5GHz Dual-band WiFi Antenna Electrical Specifications

RF Antenna Type Omni Antenna
Model CTRF-ANTENNA-FRP-2458-32600-NM
Frequency 2400MHz-2500MHz, 5150-5850MHz
Gain 8dBi
VSWR ≤2.0
Impedance 50 Ω
Polarization Vertical
Horizontal Beam-width(0º) 360º
Vertical Beam-width(0º) 10±5º
Ovality(dB) ±2dB
Connector N Male
Max Power 100W
Radiation Pattern Omnidirectional
Lightning Protection DC Ground

8dBi 2.4/5GHz Dual-band WiFi Antenna Mechanical Specifications

Dimension ɸ32x600mm
Weight 0.6KG
Operational Humidity 10-95
Rated Wind Speed 36.9m/s
Radome Material Fiberglass
Storage Temperature Range -40~+75°C
Working Temperature Range -40~+65°C
Color Matt Black
Antenna Form Waterproof
Mounting Screw/Pole
RoHS Compliant
Applications Indoor-outdoor





C&T RF Antennas Inc. provides the 32x600mm fiberglass antenna size with many different frequency bands for your best choice. Plus, if you cannot find the dream one, please contact us.

Omnidirectional Antenna – 400-480MHz UHF Omni Antenna

Omnidirectional Antenna – 700-800MHz 4G Low LTE Omni Antenna

Omnidirectional Antenna – 790-830MHz 4G Low LTE Omni Antenna

Omnidirectional Antenna – 850-895MHz CDMA 900 Omni Antenna

Omnidirectional Antenna – 920-965MHz GSM 900 Omni Antenna

Omnidirectional Antenna – 850-960MHz LoRa Dual-band Omni Antenna

Omnidirectional Antenna – 1500-1600MHz GPS Omni Antenna

Omnidirectional Antenna – 1540-1630MHz GPS & GNSS Omni Antenna

Omnidirectional Antenna – 1700-1800MHz 6dBi Omni Antenna

Omnidirectional Antenna – 1800-1880MHz DCS GSM 1800 Omni Antenna

Omnidirectional Antenna – 1920-1990MHz PCS CDMA 1900 Omni Antenna

Omnidirectional Antenna – 1805-1990MHz 6dBi Omni Antenna

Omnidirectional Antenna – 2100-2170MHz 3G UMTS Omni Antenna

Omnidirectional Antenna – 2000-2200MHz 7dBi Omni Antenna

Omnidirectional Antenna – 2400-2500MHz WiFi & Bluetooth Omni Antenna

Omnidirectional Antenna – 2620-2690MHz 4G LTE & WiMax Omni Antenna

Omnidirectional Antenna – 2500-2700MHz 4G LTE & WiMax Omni Antenna

Omnidirectional Antenna – 3400-3600MHz 3.5GHz CBRS Omni Antenna

Omnidirectional Antenna – 5725-5850MHz 10dBi 5.8GHz Omni Antenna

Omnidirectional Antenna – 5150-5850MHz 10dBi 5GHz Omni Antenna

Omnidirectional Antenna – 1400-1500MHz 5.5dBi Omni Antenna

Omnidirectional Antenna – 1424-1447MHz 5.5dBi Omni Antenna

Omnidirectional Antenna – 1420-1530MHz 5.5dBi Omni Antenna

Omnidirectional Antenna – 8dBi 2.4/5GHz Dual-band WiFi Antenna





8dBi 2.4/5GHz Dual-band WiFi Antenna Details

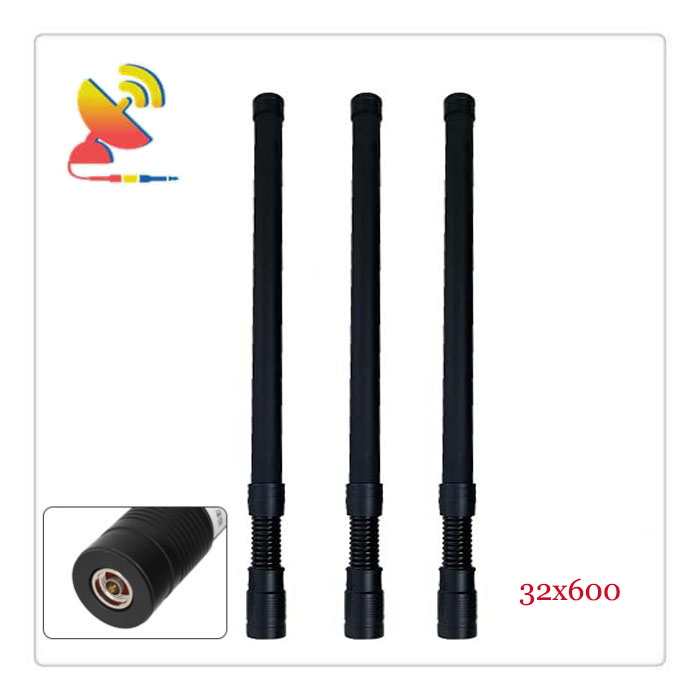

C&T RF Antennas Inc 32x600mm Outdoor Fiberglass Material Omnidirectional Antenna Structure
